Focker-Wulf 190 (Würger)........................................ ..................Specifications
The FW 190 V-1 prototype as flown by the company chief test pilot Hans Sander in Bremen on the 1 of June 1939. Note the larger propellor Spinner. This caused overheating problems to the engine and had to be replaced with a conventional spinner
The Focke Wulf FW 190, designed by Kurt Tank, was developed as a replacement for the Messerschmitt Bf 109. First powered by a Daimler Benz engine, the DB601 which was an inline engine, and later a B.M.W. radial powerplant, first the 139 and later the more powerful 801 with 1,600 hp. Despite early teething problems, concerned mostly with engine overheating due to the early large, low-drag ducted spinners, the FW 190 went on to become a worthy adversary to anything the allies could put up in the skys to face it and worthy of its name "Würger" ( English "Strangler").
The aircraft was used extensively during the Second World War, over 20,000 were manufactured, including around 6,000 fighter-bomber models. Production ran from 1941 to the end of hostilities, during which time the aircraft was continually updated. Its later versions retained qualitative parity with Allied fighter planes, but Germany was not able to produce the aircraft in enough numbers to affect the outcome of the war.
The Fw 190 was well liked by its pilots, and was quickly proven to be superior to the RAF's main front line fighter, the Spitfire Mk. V, on its combat debut in 1941. like the Bf 109, the Fw 190 was a "workhorse", employed in and proved suitable for a wide variety of roles, including ground attack, night fighter-bomber, long-range bomber escort, and night-fighter.
The first prototype, the Fw 190 V1 powered by a 1,550 hp BMW 139 two-row 14-cylinder radial engine, with civil registration D-OPZE, was flown on 1 June 1939 and soon showed exceptional qualities for such a comparatively small aircraft, with excellent handling, good visibility and speed (initially around 610 km/h (380 mph)). The roll rate was 162 degrees at 410 km/h (255 mph) but the aircraft had a high stall speed of 205 km/h (127 mph). According to the pilots who flew the first prototypes, its wide landing gear made takeoff and landing easier, resulting in a more versatile and safer aircraft on the ground than the Bf 109. The wings spanned 9.5 meters (31 ft 2 in) and had an area of 15 m² (161.46 ft²).
Problems with a far-forward cockpit location, directly behind the engine, resulted in a cockpit that became too hot for comfort. In fact during the first flight, the temperature reached 55°C (131°F), after which Focke Wulf's chief test pilot, Hans Sander commented: "It was like sitting with both feet in the fireplace." At first the V1 used a huge spinner, covering the whole area of the forward engine cowling, through which cooling air was ducted; an additional small, pointed spinner fitted inside the duct was intended to compress and speed-up the airflow, in the hope that this would be enough to cool the engine. Flight tests soon showed that the expected benefits of the design could not be realized, and, after the first few flights, this arrangement was replaced by a smaller, more conventional spinner which only covered the hub of the three bladed VDM propeller. In an attempt to increase airflow over the tightly-cowled engine a ten-bladed fan, geared to be driven at 3.12 times the engine speed, was introduced near the mouth of the cowling, which was redesigned. In this form the V1 first flew on 1 December 1939, having been repainted with the Luftwaffe's Balkenkreuz and with the Stammkennzeichen (factory code) RM+CA.
The Fw 190 V2 FL-OZ, (later RM+CB) first flew on 31 October 1939 and was equipped from the outset with the new spinner and cooling fan. It was also was armed with one Rheinmetall-Borsig 7.92 mm MG 17 and one 13 mm MG 131 in each wingroot.
Even before the first flight of the Fw 190 V1 BMW were bench testing a larger, more powerful two-row 14-cylinder radial engine designated the BMW 801. This engine introduced an engine management system called Kommandogerät: in effect a mechanical computer which metered fuel flow, throttle settings and the constant speed propeller.
The RLM convinced Focke-Wulf and BMW to abandon the 139 engine in favour of the new engine. The 801 engine was similar in diameter to the 139, although it was heavier and longer by a considerable margin. This required Tank to redesign the Fw 190, as a result of which the V3 and V4 were abandoned and the V5 became the first prototype with the new engine. Much of the airframe was strengthened and the cockpit was moved back in the fuselage, which reduced the troubles with high temperatures, and for the first time provided space for nose armament. A 12 bladed cooling fan was adopted, running at three times the engine speed. The sliding canopy was redesigned with the replacement of the rear Plexiglas glazing with duralumin panels. The vertical tail shape was also changed and its tab was replaced by a metal trim strip adjustable only on the ground. New, stiffer undercarriage struts were introduced, the retraction mechanism was changed from hydraulic to electrically powered, wheels of a bigger diameter were used and new fairings of a simplified design were used on the legs. At first the V5 used the same wings as the first two prototypes although, to make room for the bigger undercarriage, the wheel arches were enlarged by moving forward part of the leading edge of the wing root (in this form this prototype was called the V5k for kleine fläche/small wing). The V5 first flew in the early spring of 1940.
However, the weight increase was substantial, 635 kg (1,400 pounds), leading to higher wing loading and a deterioration in handling. As a result, following a collision with a ground vehicle in August 1940 that sent the V5 back to the factory for major repairs, it was rebuilt with a new wing, with a larger area, 18.30 m² (197 ft²) and span of 10.506 m (34 ft 5in) and which was less tapered in plan than the original design (the aircraft was now called the V5g for grosse fläche/large wing). This new wing platform was to be used for all major production versions of the Fw 190.
Even with the new engine and the cooling fan, the 801 suffered from very high rear row cylinder head temperatures which, in at least one case, resulted in the detonation of the fuselage mounted MG 17 ammunition. One other shortcoming of the cockpit location was a poor over-the-nose view which lead to handling problems on the ground. More than one ground crash resulted from the lack of familiarity with the new airframe.
Fw 190 A-0 were the pre-production series ordered in November 1940. 28 of these were built: because they were built before the new wing design was fully tested and approved, the first nine of the Fw 190 A-0 had small wings. All were armed with two fuselage-mounted 7.92 mm MG 17s, two wing-root mounted MG 17s and two outboard wing-mounted MG 17s. In detail they were different from later A-series Fw 190s: they had shorter spinners, the armoured cowling ring was a different shape, with a scalloped hinge on the upper, forward edge of the upper engine cowling and the bulges covering the interior air-intakes on the engine cowlings were symmetrical "teardrops'. Also, the panels aft of the exhaust pipes had no cooling slots. Several of these aircraft were later modified for testing engines and special equipment.
Engine problems plagued the 190 for much of its early development, and the entire project was threatened several times with a complete shutdown. If not for the input of Oberleutnants Karl Borris and Otto Behrens, both of whom had enlisted in the Luftwaffe as mechanics, the Fw 190 program might very well have died before reaching the front lines. Borris and Behrens could see past the limitations of the Fw 190 and the 801 and see a formidable fighter. During several RLM commissions that wished to terminate the program, both men indicated that the Fw 190's outstanding qualities outweighed its deficiencies.
The first unit to be equipped with the A-0 was Eprobungsstaffel 190, formed in March 1941 to help iron-out any technical problems and approve the new fighter before it would be accepted for full operational service in mainstream Luftwaffe Jagdgeschwader. At first this unit, commanded by Oblt. Behrens, was based at Rechlin, although it was soon moved to Le Bourget. Some 50 modifications were required before the RLM approved the Fw 190 for deployment to Luftwaffe units.
Engine reliability problems, particularly overheating, continued to plague the Fw 190 until spring 1942 and the availability of the BMW 801 C-2 engine in the Fw 190 A-2. In fact, the problem was relatively easy to solve by rerouting part of the exhaust system, a method discovered by III./JG 26's Technical Officer ("T.O.") Rolf Schrödeter. To quickly implement the fix, it was found the rerouting could be done easily in Gruppe workshops.
Fw 190 A-1
This version first rolled off the assembly lines in June 1941. The first few models were shipped to the Erprobungsstaffel (formerly from II./JG 26 Schlageter) for further testing. Following this testing the Fw 190 A-1s entered service with II./JG 26 stationed outside of Paris, France. The A-1 was equipped with the BMW 801C-1 engine, rated at 1,560 PS (1,539 hp, 1,147 kW). Armament consisted of two fuselage-mounted 7.92 mm MG 17s, two wing-root mounted MG 17s and two outboard wing-mounted 20 mm MG-FF/Ms. The new longer propeller spinner and the cowling bulges, which became asymmetrical "teardrops" in shape, remained the same for the rest of the A-series. The panel immediately behind the exhaust outlets was unslotted, although some A-1s were retro-fitted with cooling slots. A new hood jettisoning system, operated by an MG/FF cartridge, was introduced. The pilot's head armour changed in shape and was supported by two thin metal struts in a "V" shape attached to the canopy sides. There were 102 Fw 190 A-1s built between June and late October of 1941. The A-1 models still suffered from the overheating that prototype Fw 190s had suffered from during testing. After only 30 to 40 hours of use (sometimes less), soon after, many of these early engines had to be replaced.
The first of these appeared in October 1941 and were equipped with the BMW 801 C-2 rated at 1,622 PS (1,600 hp, 1,193 kW). The new re-routed exhaust system devised by Oblt. Schrödeter of II./JG 26 finally resolved most of the overheating problems. The addition of new ventilation slots on the side of the fuselage further aided cooling. The A-2 wing weaponry was updated, with the two wing-root mounted MG 17s being replaced by 20 mm MG 151/20E cannons. With the introduction of the new cannons, the Revi C12/C gun sight was upgraded to the new C12/D model. The introduction of the A-2 marked a shift in air supremacy from the British, with their Spitfire Mk. V, to the Germans. German production records make no real distinction between A-2s and A-3s, which were very similar aircraft: the total combined A-2 and A-3 production was 910 airframes built between October 1941 and August 1942 .
Production began in the spring of 1942. The A-3 model was equipped with the BMW 801 D-2 engine, which increased power to up to 1,754 PS (1,730 hp, 1,290 kW) at take-off by improving the supercharger and raising the compression ratio. Because of these changes the A-3 model required a higher-octane fuell—96 (C3) versus 87 (B4). The A-3 retained the same weaponry as the A-2. The A-3 also introduced the Umrüst-Bausätze factory conversion sets. The U3 was the first of the Jabo (Jagdbomber), adding an ETC-501 (Einzel Träger C-Munition) centre-line bomb rack able to carry up to 500 kg of bombs or, with horizontal stabilising bars, one 300 litre drop-tank. All Fw 190s which carried the centre-line racks had their inner wheel-bay doors removed and replaced by fixed fairings which were, in effect, a cut away door. These fixed fairings incorporated a raised deflector to prevent hot exhaust gases from the lower exhausts spilling over onto the tyres. When these fairings were used an additional small plate was fixed to the undercarriage leg doors. The U3 retained the fuselage mounted MG 17s and the MG 151 wing cannons. The U4 was a reconnaissance version with two RB 12.5 cameras in the rear fuselage and a EK 16 camera-gun or a Robot II miniature camera in the leading edge of the port wingroot. Armament was similar to the U3, however the ETC 501 was usually fitted with a 300-litre drop tank. The U1 and U2 designations were given to single experimental Fw 190s: U1 W.Nr130270 was the first 190 to have the engine mount extended by 15 cm. The U2 W.Nr 130386 was an aircraft which had RZ 65 73 mm rocket launcher racks under the wings with three rockets per wing. There were also a small number of U7 aircraft tested as high altitude fighters armed with only two MG 151 cannons, but with reduced overall weight. See A-2 for production numbers.
In Autumn 1942, a political decision diverted 72 new aircraft off the production lines for delivery to Turkey in an effort to keep this country friendly with the Axis powers. These were designated Fw 190 Aa-3 (a=auslandisch-foreign) and these were delivered between October 1942 and March 1943. The Turkish aircraft had the same armament as the A-1, four MG 17 machine guns and two MG FF cannon, There was no FuG 25 IFF device in the radio equipment.
Introduced in July 1942, the A-4 was equipped with the same engine and basic armament as the A-3. Updated radio gear, the FuG 16Z, was installed replacing the earlier FuG 7a. A new vertical aerial mount was fitted to the top of the tailfin, a configuration which was kept through the rest of the production Fw 190s. In some instances pilot-controllable engine cooling vents were fitted to the fuselage sides in place of the plain slots. The A-4's main improvement was the number of Umrüst-Bausätze versions. The U1 was outfitted with an ETC 501 rack under the fuselage all armament with the exception of the MG 151 cannons was removed. The U3 was very similar to the U1 and later served as the Fw 190 F-1 assault fighter. Some U3s used for night operations had a landing light, mounted in the leading edge of the left wing root The U4 was a reconnaissance fighter, with two RB 12.4 cameras in the rear fuselage and a EK 16 or Robot II gun camera. The U4 was equipped with fuselage-mounted MG 17s and MG 151 cannons. The U7 was a high-altitude fighter, easily identified by the compressor air-intakes on either side of the cowling. Adolf Galland (a famed BF 109 ace) himself flew a U7 in the spring of 1943. The A-4/U8 was the Jabo-Rei (Jagdbomber Reichweite, long-rang fighter-bomber), adding a 300-litre drop tank under each wing, on VTr-Ju 87 racks with duralumin fairings produced by Weserflug, and a centre-line bomb rack. The outer-wing MG FF/M cannons and the cowling-MG 17 were removed to save weight. The A-4/U8 served as the model for the Fw 190 G-1. A new series of easier to install Rüstatz field kits began to be produced in 1943. The first of these, the A-4/R1 was fitted with a FuG 16ZY radio set with a Morane whip-aerial fitted under the port wing. These aircraft were called Leitjäger or Fighter Formation Leaders that could be tracked and directed from the ground via special R/T equipment called Y-Verfahren. More frequent use of this equipment was made from the A-5 onwards. Some A-4s were outfitted with underwing WGr 21 rocket mortars; these were designated Fw 190 A-4/R6. A total of 976 A-4s were built between June 1942 and March 1943.
The A-5 was developed after it was determined that the Fw 190 could easily carry more ordnance. The engine was moved forward by 15 cm, and the aircraft was equipped with the BMW 801 D-2 engine, rated at 1,700 PS (1,677 hp, 1,250 kW). Some A-5s incorporated the MW 50 installation: this was a mix of 50% methyl alcohol and 50% water which could be injected into the engine to produce a short-term power boost to 2,129 PS (2,100 hp, 1,565 kW). New radio gear, including FuG 25a Erstling IFF and an electric artificial horizon found their way into the A-5. The A-5 retained the same basic armament as the A-4. The A-5 too, saw several Umrüst-Bausätze kits. The U2 was designed as a night Jabo-Rei and featured anti-reflective fittings and exhaust flame dampeners. A centre-line ETC 501 rack typically held a 250 kg bomb, and wing-mounted racks mounted 300-litre drop tanks. A EK16 gun camera, as well as landing lights, were fitted to the wing leading edge. The U2 was armed with only two MG 151 cannons. The U3 was a Jabo fighter fitted with ETC 501s for drop-tanks and bombs; it too featured only two MG 151s for armament. The U4 was a "recon" fighter with two RB 12.5 cameras and all armament of the base A-5 with the exception of the MG FF cannons. The A-5/U8 was another Jabo-Rei outfitted with SC-250 centre-line mounted bombs, underwing 300-litre drop tanks and only two MG 151s; it later became the Fw 190 G-2. A special U12 was created to fight American and British bombers, outfitted with the standard MG 17 and MG 151 but replacing the outer-wing MG-FF cannons by two underwing gun pods containing two MG 151/20 each for a total of two machine guns and six cannons. The A-5/U12 was the prototype installation of what was known as the R1 package from the A-6 onwards. The A-5/R11 was a night-fighter conversion fitted with FuG 217 Neptun (Neptune) radar equipment with arrays of three antennae vertically mounted fore and aft of the cockpit and above and below the wings. Flame dampening boxes were fitted over the exhaust exits. There were 1,752 A-5s built from November 1942 to June 1943.
The Fw 190 A-6 was developed to fix the shortcomings found in previous "A" models when fighting U.S. heavy bombers. Modifications of the type to date had caused the weight of the aircraft to creep up. To combat this and to allow better weapons to be installed in the wings, a structurally redesigned and lighter wing was introduced with the A-6. The normal armament was increased to two MG 17 fuselage machine guns and four MG 151/20E wing-root and outer wing cannon with larger ammunition boxes. New electrical sockets and reinforced weapon-mounts were fitted internally in the wings to allow the installation of either 20mm or 30mm ammunition boxes and for under-wing armament. Because the outer wing MG 151s were mounted lower than the MG/FFs new larger hatches, incorporating bulges and cartridge discharge chutes, were incorporated into the wing lower surfaces. It is believed the MG 17s were kept because their tracer rounds served as a targeting aid for the pilots. A new FuG 16 ZE radio navigation system was fitted in conjunction with a FuG 10 ZY. A loop aerial for radio-navigation, mounted on a small "teardrop" base was fitted under the rear fuselage, offset slightly to port, with an additional short "whip" aerial aft of this. These aerials were fitted on all later Fw 190 variants. In late 1943 the Erla Antwerp factory designed a new, much more simple rack/drop tank fitting, which was much more streamlined than the bulky ETC 501 and could be quickly fitted or removed prior to take-off. Several A-6s, A-7s and A-8s of JG 26 were fitted with these racks (one aircraft so fitted was A-8 W.Nr.170346 Black 13 flown by Obstlt. Josef Priller during the Normandy invasion on 6 June 1944.) The A-6 was outfitted in numerous ways with various sets, Rüstsätze (field modification kits): more flexible than the factory upgrade kits for previous versions, these field upgrade kits allowed the A-6 to be refitted in the field as missions demanded. At least 963 A-6s were built between July 1943 ending in April 1944 according to RLM acceptance reports and Focke-Wulf production books .
The Fw 190 A-7 was based on the Fw 190 A-5/U9 prototype, and entered production in November of 1943. The A-7 was equipped with the BMW 801 D-2 engine, again producing 1,700 PS (1,677 hp, 1,250 kW). Designed to combat the USAAF's heavy bombers the basic armament was upgraded to include two fuselage-mounted MG 131s, replacing the MG 17s. Because the bulkier MG 131s had to be mounted further apart the upper gun cowling, just in front of the cockpit, was modified with faired bulges and a new upper engine cowling, with the gun blast troughs further apart, was manufactured. This left insufficient room for the three cowling toggle-latches which were moved to the cowling side panels. The rest of the armament fit stayed at two wing-root mounted MG 151s and two outer-wing mounted MG 151s. The Revi gun sight was updated to the new 16B model. The additional weight of the new weapon systems required the updating of the wheels, adding a reinforced rim to better deal with typical combat airfield conditions. The A-7 was usually outfitted with the centre-line mounted ETC 501 rack. There were several major Rüstsätze for the A-7 many including Werfer-Granate WGr 21 rockets. A total of 800 A-7s were produced from November 1943 to January 1944.
The Fw 190 A-8 entered production in February 1944. The A-8 was the most numerous of the Fw 190 A's, with over 6,550 A-8 airframes produced. Changes introduced with the Fw 190 A-8 included the GM 1 nitrous oxide erhöhte notleistung emergency boost system to the fighter variant of the Fw 190 A (a similar system had been fitted to some earlier Jabo variants of the 190 A) raising power to 1,980 PS (1,953 hp, 1,456 kW) for a short time. The erhöhte notleistung system operated by spraying additional fuel into the fuel/air mix, cooling it and allowing higher boost pressures to be run, but at the cost of much higher fuel consumption. From the A-8 on Fw 190s could be fitted with a new paddle-bladed wooden propeller, easily identified by its wide blades with curved tips. A new bubble canopy design, with greatly improved vision sideways and forward had been developed for the F-2 ground attack model, but was often seen fitted at random on A-8s, F-8s and G-8s. The new canopy included a larger piece of head armour which was supported by reinforced bracing and a large fairing. A new internal fuel tank was fitted behind the cockpit, which meant that the radio equipment had to be moved forward to just behind the pilot. Externally, a large round hatch was incorporated into the lower fuselage to enable the new tank to be installed and the pilot's oxygen bottles were moved aft and positioned around this hatch. A fuel filler was added to the port side, below the rear canopy and a rectangular radio access hatch was added to starboard. Other changes included an ETC 501 under-fuselage rack which was mounted on a lengthened carrier and moved 200mm further forward to help restore the centre of gravity of the aircraft. This fuselage would form the basis for all later variants of the Fw 190 and the Ta 152 series. The Morane "whip" aerial for Y-Verfahren was fitted as standard under the port wing, just aft of the wheel-well. Nearly a dozen Rüstsätze kits were made available for the A-8, including the famous A-8/R2 and A-8/R8 models which were outfitted with heavy armour including 30 mm canopy and windscreen armour, 5 mm cockpit armour and upgraded outer-wing cannons such as the MK 108 30 mm cannon that could destroy most heavy bombers with two or three hits. A-8's were produced by at least eight factories during its lifetime.
Fw 190 A-9
The Fw 190 A-9 was the last A-model produced, and was first built in September 1944. The A-9 was fitted with the new BMW 801S, called the 801 TS or 801 TH when shipped as a “power-egg”, or Kraftei, engine (an aircraft engine installation format embraced by the Luftwaffe for a number of engine types on operational aircraft, in part for easy field replacement) rated at 2,000 PS (1,973 hp, 1,471 kW); the more powerful 2,400 hp (1,790 kW) BMW 801F-1 was not available. The armour on the front annular cowling, which also incorporated the oil tank, was upgraded from the 6 mm on earlier models to 10 mm. The 12-blade cooling fan was often, but not always, changed to a 14-blade fan. The cowling of the A-9 was also slightly longer than that of the previous Anton's due to the use of a larger, more efficient annular radiator for the oil system. The bubble canopy design with the larger head armour was fitted as standard. Three types of propeller were authorised for use on the A-9: a VDM 9-112176 A wood propeller, 11' 6" in diameter was the preferred option however many A-9s were fitted with the standard VDM 9-12067 A metal propeller and some had a VDM 9-12153 A metal propeller with external, bolt on balance weights. The A-9 was also designed originally as an assault aircraft, so the wing leading edges were to have been armoured; however this did not make it past the design stage in order to save weight. The A-9 was very similar to the A-8 in regards to the armament and Rüstsätze kits. A total of 910 A-9s were built between late 1944 and May 1945, mostly in Focke Wulf's Cottbus factory.
In total about 13,291 Fw 190 As were produced in all variants.
Fw 190 D Long-Nose Dora
The Fw 190 D (nicknamed the Dora; or Long-Nose Dora, "Langnasen-Dora") was intended to improve on the high-altitude performance of the A-series enough to make it useful against the American heavy bombers of the era. In the event the D series was rarely used against the heavy bomber raids as the circumstances of the war in late-1944 meant that fighter versus fighter combat and ground attack missions took priority.
The liquid-cooled 1,750 PS (1,726 hp, 1,287 kW) Jumo 213 A could produce 2,100 PS (2,071 hp, 1,545 kW) of emergency power with MW 50 injection, improving performance to 426 mph at 21,650 feet. It should be noted, however, that this type of performance was achieved under test conditions. Many D-9s reached service without the MW50 installation and were unable to compete with the latest Allied fighters. he new airplane lacked the high turn rate and incredible rate of roll of its close-coupled radial-engined predecessor. It was a bit faster, however, with a maximum speed of 680 km/h (422 mph) at 6600 meters (21,650 feet).Its 2240 horespower with methanol-water injection (MW 50) gave it an excellent acceleration in combat situations. It also climbed and dived more rapidly than the Fw 190A, and so proved well suited to the dive-and-zoom ambush tactics favored by the Schlageter pilots. Many of the early models were not equipped with tanks for methanol, which was in very short supply in any event. At low altitude, the top speed and acceleration of these examples were inferior to those of Allied fighters. Hans Hartigs recalled that only one of the first batch of Dora-9s received by the First Gruppe had methanol-water injection, and the rest had a top speed of only 590 km/h (360 mph).
At the time it was expected the D models would replace the A series outright on the production lines, so the first version was called the Fw 190 D-9, the A-8 being the current production model. Supply problems with the Jumo 213 forced the A model to remain in production longer than expected, making this re-naming effort superfluous.
Due to the multiple attempts to create an effective next generation 190, as well as the comments of some Luftwaffe pilots, expectations of the Dora project were low. These impressions were not helped by the fact that Tank made it very clear that he intended the D-9 to be a stop-gap until the Ta 152 arrived. These negative opinions existed for some time until positive pilot feedback began arriving at Focke-Wulf and the Luftwaffe command structure. Sporting excellent handling and performance characteristics, it became very clear that the D-9 was nearly the perfect response to the Luftwaffe's need for an effective medium altitude, high-speed interceptor, although its performance still fell away at altitudes above about 20,000 feet. When flown by capable pilots, the Fw 190D proved to be a match for P-51s and Mk. XIV Spitfires. In most World War II pilot circles the D-9 and the similar Ta 152 were considered the pinnacle of German piston-engined aircraft.
In order to fit the new engine in the Fw 190 fuselage while maintaining proper balance and weight distribution, both the nose and the tail of the aircraft were lengthened, adding nearly 1.52 meters to the fuselage, bringing the overall length to 10.192 meters versus the 9.10 meters of the late war A-9 series. The lengthened tail required that an extra, straight sided bay, 30cm in length, was spliced in forward of the rear angled joint and tail assembly of the fuselage. To further aid balance the pilot's oxygen bottles were moved aft and located in the new bay. This gave the rear fuselage a much "skinnier" appearance.
Furthermore, the move to an inline engine required more components to be factored into the design, most significantly the need for coolant radiators (radial engines are air-cooled). To keep the design as simple and as aerodynamic as possible, Tank used an annular radiator (the AJA 180 L) installed at the front of the engine, similar to the configuration used in the Jumo powered versions of the Junkers Ju 88. The annular radiator with its adjustable cooling gills resembled a radial engine installation, although the row of six short exhausts stacks on either side of the elongated engine cowling showed that Jumo 213 was an inverted vee-12 engine. While the first few Doras were fitted with the flat-top canopy, these were later replaced with the newer rounded top "blown" canopy first used on the A-8 model. With the canopy changes, the shoulder and head armour plating design was also changed. Some late model Doras were also fitted with the Ta 152 vertical stabilizer and rudder, often called "Big Tails" by the Luftwaffe ground crews and pilots as seen on W.Nr. 500647 Brown 4 from 7./JG 26 and W.Nr. 500645 Black 6 from JG 2). The centre-line weapons rack was changed to an ETC 504 with a simplified and much smaller mounting and fairing.
As it was used in the anti-fighter role, armament in the "D" was generally lighter compared to that of the earlier aircraft – usually the outer wing cannon were dropped so that the armament consisted of two 13 mm MG 131 machine guns and two 20 mm MG 151/20 E wing root cannon. What little it lost in roll rate, it gained in turn rate, climb, dive and horizontal speed. The Dora still featured the same wing as the A-8, however, and was capable of carrying outer wing cannons as well, as demonstrated by the D-11 variant, with a three-stage supercharger and four wing cannon (two MG 151s and two MK 108s).
The first Fw 190 D-9s started entering service in mid-November 1944. One of the first units to convert to the new fighter from the A-8 was I./JG 26, starting 16 November.
Some Fw 190 Ds served as fighter cover for Me 262 airfields as the jet fighters were very vulnerable on takeoff and landing. These special units were known as Platzsicherungstaffel (airfield defence squadron). One unit in particular was created by Leutnant Heinz Sachsenberg at the behest of Adolf Galland, had the entire aircraft underside painted in narrow red and broad white stripes. The unique colour scheme helped anti-aircraft artillery protecting the airfields quickly identify friendly aircraft, and may have been based on the D-Day invasion stripes used by the Allied air forces. The unit, known as Würger-Staffel, guarded the airfield of JV 44, operational late in the war, from about March 1945 to May 1945, and was used only to defend landing Me 262s and as such prohibited from chasing Allied aircraft. Fw 190 D-11
17 Fw 190 D-11s were known to have been manufactured. This version was fitted with the uprated Jumo 213E series engine which was also used in the Ta-152 H series. Changes over the D-9 were the enlarged supercharger air-intake on the starboard side cowling and the use of a wooden, broad-bladed VS 9 or 10 propeller unit utilizing three 9-27012 C-1 blades with a diameter of 3.6 meters. The 13mm fuselage guns were dropped, and the cowling redesigned, omitting the gun troughs and being changed to a to a flat profile. Two 30 mm MK 108 weapons were installed in the outer wings to complement the 20 mm MG 151s in the inboard positions. Of the 17 Dora-11s delivered, three can be accounted for. One, the best-known, was Rote 4 (red 4) of JV 44's Platzschutz unit. Another, white chevron, was found at München-Riem, and may have served with JV 44 after serving at the Verbandsführerschule General der Jagdflieger (Training School for Unit Leaders) at Bad Wörishofen; it is not known if it was actually used operationally. A third, "white <61," was also found after the war at the Verbandsfuehrerschule General der Jagdflieger.
While the D-11 was under manufacture, work stated on the Fw 190 D-12 and D-13 models. The D-12 and D-13's were based on the D-11 design, however the D-12 and D-13 were fitted with nose cannons firing through the propeller hub (the D-12 would be fitted with a Mk 108 30mm cannon and the D-13 would be fitted with a MG 151/20 20 mm cannon). There were three test aircraft built for the D-12 line, V63, V64 and V65 but no production aircraft were built.
The Fw 190 D-13 started with the construction of two prototypes (W.Nr 732053 and W.Nr 7322054), and the MG 151/20 20 mm cannon was found to be quite suited for the aircraft and was already well known to be effective against allied bombers, as well as a decent ground support weapon. Thus the Fw 190 D-13/R11 was selected to enter production. The D-13/R11 was fitted with all weather flying equipment including the PKS12 and K-23 systems for steering and autopilot. The FuG 125 radio system, known as Hermine was fitted to the aircraft, as well as a heated windscreen. Pilots reported that due to the large amounts of torque produced by the engine, they usually used the steering system during the take-off run as it helped with the rudder movements. The D-13 also introduced a hydraulic boost system for the ailerons, which was later used on the Ta 152.
In all the RLM called for 820 D-11 airframes to be built by Focke-Wulf Sorau, stating in early 1945, Fieseler Kassel was tasked to build 1420 D-12's starting in the same time frame and the manufacture of the D-13 was passed to Arbeitsgruppe Roland tasked with the construction of 1,060 airframes starting again in early 1945. For some yet unknown reason, production of the D-12 was cancelled in favour of the D-13 model. From evidence from the Oberkommando der Luftwaffe General Quartiermeister document Nr. 2766/45 of April 1945, it was known that 17 D-13s were more than likely built, but only two were known to be in service. A D-13 (Wk. Nr 836017) flown by the Geschwaderkommodore of JG 26, Franz Götz, an ace with 63 kills, was captured intact by U.S. army personnel in May 1945. This aircraft is still in existence, painted in its original colour scheme as Yellow 10, is thought to be airworthy and is currently located in the Museum of Flight in Seattle, Washington. This aircraft is one of the few existing Fw 190's with a history that can be traced back from its manufacture to the current date.
While nearly all variants of the Fw 190 could carry bombs and other air-to-ground ordnance, there were two dedicated attack versions of the Fw 190. The Luftwaffe was looking for aircraft to replace the Henschel Hs 123 biplane, which were seriously outmatched in 1942, as well as the slow and heavy Junkers Ju 87. The excellent low-level performance and reasonably high power of the Fw 190 suggested it would be a "natural" in this role. Two versions of the Fw 190 were eventually built, customized for this mission.
The Fw 190 F was started as a Fw 190 A-0/U4. Early testing started in May 1942. This A-0 was outfitted with centre-line and wing mounted ETC 50 bomb racks. The early testing was quite good, and Focke-Wulf began engineering the attack version of the Fw 190. New armor was added to the bottom of the fuselage protecting the fuel tanks and pilot, the engine cowling, and the landing gear mechanisms and outer wing mounted armament. Finally the Umrüst-Bausätze kit 3 was fitted to the aircraft by means of a ETC 501 or ER4 centre-line mounted bomb rack and up to a SC250 bomb under each wing. This aircraft was designated the Fw 190 F-1. The first 30 Fw 190 F-1s were renamed Fw 190 A-4/U3s; however, Focke-Wulf quickly began assembling the aircraft on the line as Fw 190 F-1s as their own model with 18 more F-1s built before switching to the F-2. The Fw 190 F-2s were renamed Fw 190 A-5/U3s, which again were soon assembled as Fw 190 F-2s on the production line. There were 270 Fw 190 F-2s built according to Focke-Wulf production logs and RLM acceptance reports.
The Fw 190 F-3 was based on the Fw 190 A-5/U17, which was outfitted with a centre-line mounted ETC 501 bomb rack, and two double ETC 50 bomb racks under each wing. 432 Fw 190 F-3s were built.
Due to difficulties creating an effective strafing Fw 190 F able to take out the Russian T-34 tank, the F-4 through F-7 models were abandoned, and all attempts focused on conversion of the Fw 190 A-8.
The Fw 190 F-8 differed from the A-8 model with a slightly modified injector on the compressor which allowed for increased performance at lower altitudes for several minutes. The F-8 was also outfitted with the improved FuG 16 ZS radio unit which provided much better communication with ground combat units. Armament on the Fw 190 F-8 was two MG 151/20 20 mm cannon in the wing roots and two MG 131 machine guns above the engine. According to RLM acceptance reports at least 3,400 F-8 were built, probably several hundreds more in December 1944 and from February to May 1945 (data for these months is missing and probably lost).
Dozens of F-8s served as various testbeds for anti-tank armament, including the WGr.28 280 mm ground-to-ground missile, 88 mm Panzerschreck 2 rockets, Panzerblitz 1 and R4M rockets.
There were also several Umrüst-Bausätze kits developed for the F-8, which included: The Fw 190 F-8/U1 long range JaBo, outfitted with underwing V.Mtt-Schloß shackles to hold two 300-liter fuel tanks. ETC 503 bomb racks were also fitted, allowing the Fw 190 F-8/U1 to carry one SC 250 bomb under each wing and two SC 250 bombs on the centre-line.
The Fw 190 F-8/U2 torpedo bomber, outfitted with an ETC 503 bomb rack under each wing and a centre-line mounted ETC 504. The U2 was also equipped with the TSA 2 A weapons sighting system that improved the U2's ability to attack seaborne targets.
The Fw 190 F-8/U3 heavy torpedo bomber was outfitted with an ETC 502, which allowed it to carry one BT-1400 heavy torpedo. Due to the size of the torpedo, the U3's tail gear needed to be lengthened. The U3 also was fitted with the 2,000 PS BMW 801S engine, and the tail from the Ta 152.
The Fw 190 F-8/U4 created as a night fighter, was equipped with flame dampers on the exhaust and various electrical systems such as the FuG 101 radio altimeter, the PKS 12 automatic pilot, and the TSA 2 A sighting system. Weapons fitted ranged from torpedoes to bombs; however, the U4 was outfitted only with two MG 151/20 cannon as fixed armament.
The Fw 190 F-9 was based on the Fw 190 A-9 but with the new Ta 152 tail unit, a new bulged canopy as fitted to late-build A-9s, and four ETC 50 or ETC 70 bomb racks under the wings. According to RLM acceptance reports 147 F-9 were built in January 1945, probably several hundreds more from February to May 1945 (data for these months is missing and probably lost).
The Fw 190 G was built as a long range attack aircraft (JaBo Rei, or Jagdbomber mit vergrösserter Reichweite). Following the success of the Fw 190 F as a Schlachtflugzeug (close support aircraft), both the Luftwaffe and Focke-Wulf began investigating ways of extending the range of the Fw 190 F. From these needs and tests, the Fw 190 G was born.
There were four distinct versions of the Fw 190 G: The Fw 190 G-1: The first Fw 190 Gs were based on the Fw 190 A-4/U8 JaBo Rei's. Initial testing found that if all but two wing root mounted MG 151 cannons (with reduced ammo load) were removed, the Fw 190 G-1 as it was now called, could carry a 250 kg or 500 kg bomb on the centre-line and, via an ETC 250 rack, up to a 250 kg bomb under each wing. Typically the G-1s flew with underwing fuel tanks, fitted via the VTr-Ju 87 rack. The FuG 25a IFF (identification friend/foe) was fitted on occasion as well as one of the various radio direction finders available at the time. With the removal of the fuselage mounted MG 17s, an additional oil tank was added to support the BMW 801 D-2 engine's longer run times
The Fw 190 G-2: The G-2 was based on the Fw 190 A-5/U8 aircraft. The G-2s were similarly equipped to the G-1s, however due to wartime conditions, the underwing drop tank racks were replaced with the much simpler V.Mtt-Schloß fittings, to allow for a number of underwing configurations. Some G-2s were also fitted with the additional oil tank in place of the MG 17s, however not all were outfitted with the oil tank. Some G-2s were fitted with exhaust dampers and landing lights in the left wing leading edge for night operations.
The Fw 190 G-3: The G-3 was based on Fw 190 A-6. Like the earlier G models, all but the two wing root mounted MG 151 cannons were removed. The new V.Fw. Trg bombracks however, allowed the G-3 to simultaneously carry fuel tanks and bomb loads. Because of the range added by two additional fuel tanks, the G-3's duration increased to two hours, 30 minutes. Due to this extra flight duration, a PKS 11 autopilot was fitted. Some G-3s built in late 1943 were also fitted with the a modified 801 D-2 engine which allowed for increased low-altitude performance for short periods of time. The G-3 had two primary Rüstsätze kits. The R1 replaced the V.Fw. Trg racks with WB 151/20 cannon pods. This gave the G-3/R1 a total of 6 20 mm cannons. When fitted with the R1 kit, the G model's addition armor was typically not used, and the PKS11 removed. The G-3/R1 was used in both ground strafing and anti-bomber roles. The R5 was similar to the R1, but the V.Fw. Trg racks were removed, and two ETC 50 racks per wing were added. As with the R1, the additional armor from the base G model were removed, as was the additional oil tank. In some instances, the fuselage mounted MG 17s were refitted.
The Fw 190 G-8: The G-8 was based on the Fw 190 A-8. The G-8 used the same "bubble" canopy of the F-8, and was fitted with underwing ETC 503 racks that could carry either bombs or drop tanks. Two primary Rüstsätze kits were also seen on the F-8. The R4, which was a planned refit for the GM 1 engine boost system, but never made it into production, and the R5 which replaced the ETC 503's with two ETC 50 or 71 racks. Due to the similarities with the F-8, the G-8 was only in production for a short amount of time
Some Gs were field modified to carry 1,000 kg, 1,600 kg and 1,800 kg bombs. When this was done the landing gear was slightly improved by enhancing the oleo struts and using reinforced tires.
Approximately 1300 Fw 190 Gs of all variants were new built. Due to war conditions, the manufacturing environment and the use of special workshops during the later years of the war, the accurate number of G models built is next to impossible to determine. During the later years of the way, use of "composite" aircraft, for example, wings from a fuselage damaged aircraft, and the fuselage from a wing damaged aircraft were often reassembled and listed as a Fw 190G with a new serial number. The Fw 190 G-1 currently at the National Air and Space Museum is one of these "composite" planes, built from the fuselage of a Fw 190 A-7.
As the Luftwaffe phased out older aircraft such as the Ju 87, and replaced them with the Fw 190, many pilots required flight training to make the transition as quickly and smoothly as possible. Thus was born the Schulflugzeug (literally "school airplane") training version of the Fw 190. Several old Fw 190 A-5s, and later in 1944, A-8s, were converted by replacing the MW 50 tank with a second cockpit. The canopy was modified, replaced with a new three section unit, which opened to the side, similar to the Bf109. The rear portion of the fuselage was closed off with sheet metal. Originally designated Fw 190 A8-U1, they were later given the Fw 190 S-5 and S-8 designation. There were an estimated 58 Fw 190 S-5 and S-8 models converted or built.
After the "D," later variants of the 190 were named "Ta", after Kurt Tank, when the RLM changed their naming to reflect the chief designer instead of the company he represented. This was a singularly rare honorific, Tank was the first engineer to be so honoured. The aircraft developed into something much different than earlier Fw 190 models. The most promising design was the Ta 152H; the "H" model used the liquid-cooled Jumo 213E engine and possessed a much greater wing area for better high-altitude performance - to attack the expected B-29s. It was capable of speeds in excess of 700 km/h (435 mph) and had a service ceiling of around 15,000 m (49,200 ft). Armed with a single 30 mm cannon and two MG 151/20E guns, it was highly promising, but manufacturing problems, materials shortages and the disruption towards the end of the war resulted in very few Ta 152s of all types being built (no more than 150 in total). Effort was also diverted into further prototype work, the lower-altitude Ta 152 C with a DB 603 engine and five cannon [this possessed the noticeably shorter wing]. However as the last days of the war dawned, the rushed construction of the Ta 152 H and its engines became its undoing as failures and lack of spare parts affected the aircraft seriously enough to ground all H models, leaving only the two constructed C models flying at the end of the war.
Fw 190 As were also used to launch and control the unmanned Mistel guided bombs during the last days of the Western Front in the Second World War. Most of the Mistels used in combat were launched from Fw 190 motherships.

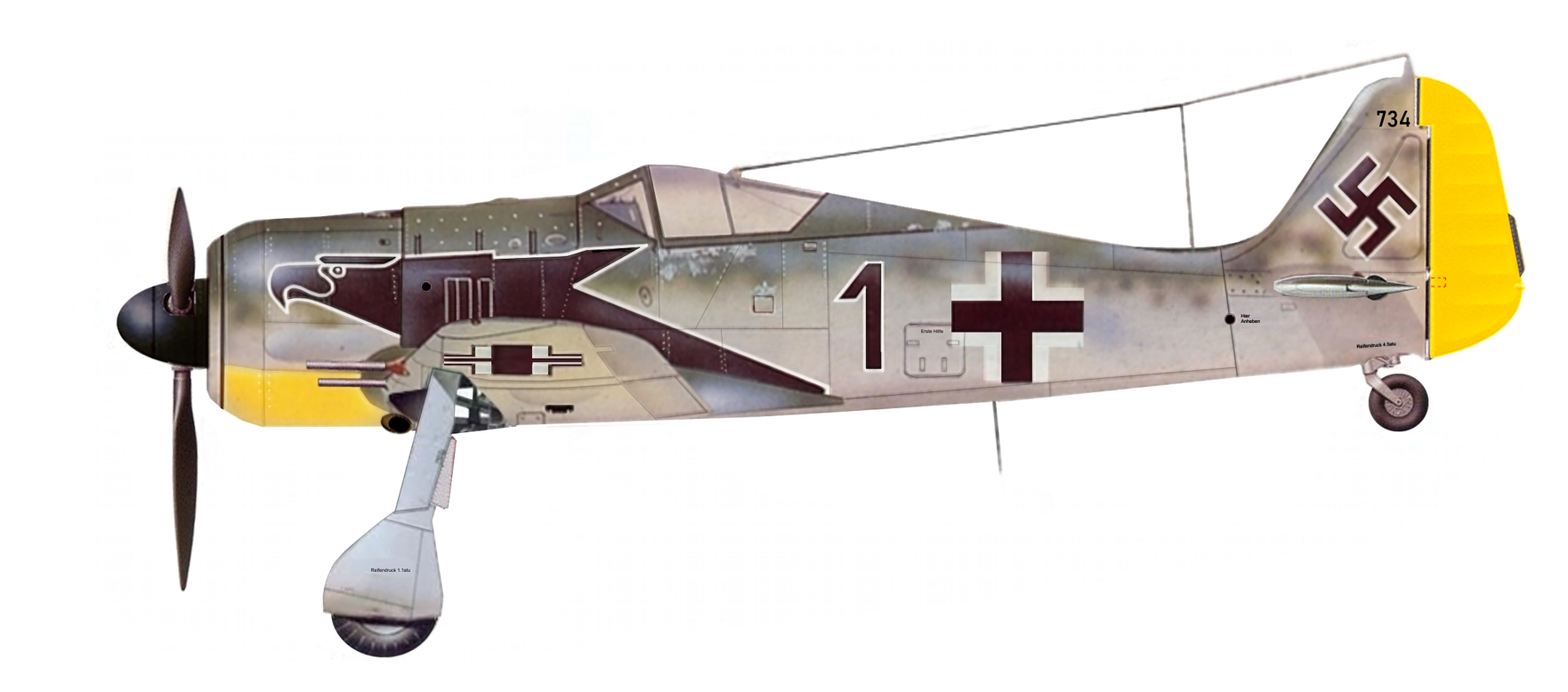

FW 190 A-3 of 2/JG2 Black 1 was shot down in May 1943

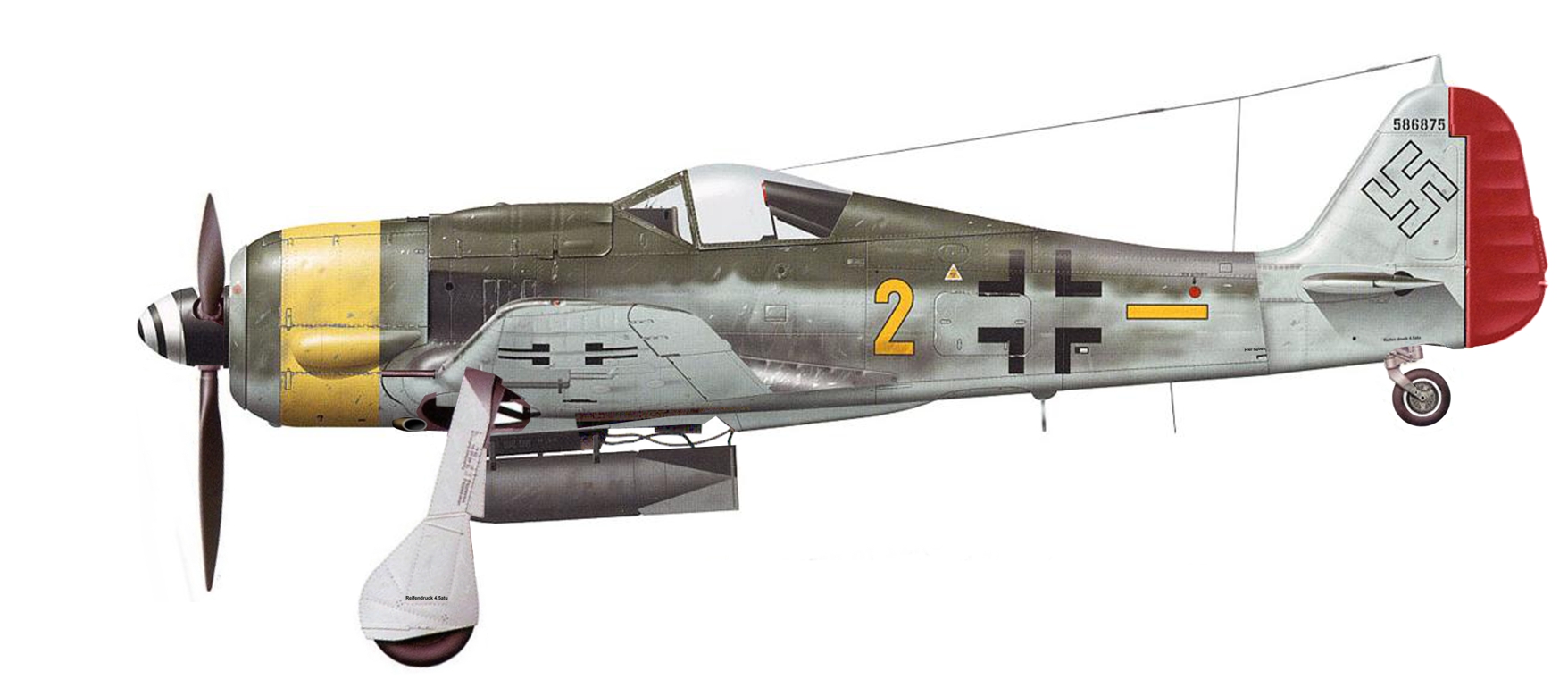

FW 190 F-8 JABO yellow 2, WN 586875 of Luftflotte 4 with a red Oxide anti.fungal primer on the Rudder. The F-8 had bomb racks fitted on the wings and centreline for carrying bombs. Also outfitted with underwing V.Mtt-Schloß shackles to hold two 300-liter fuel tanks.

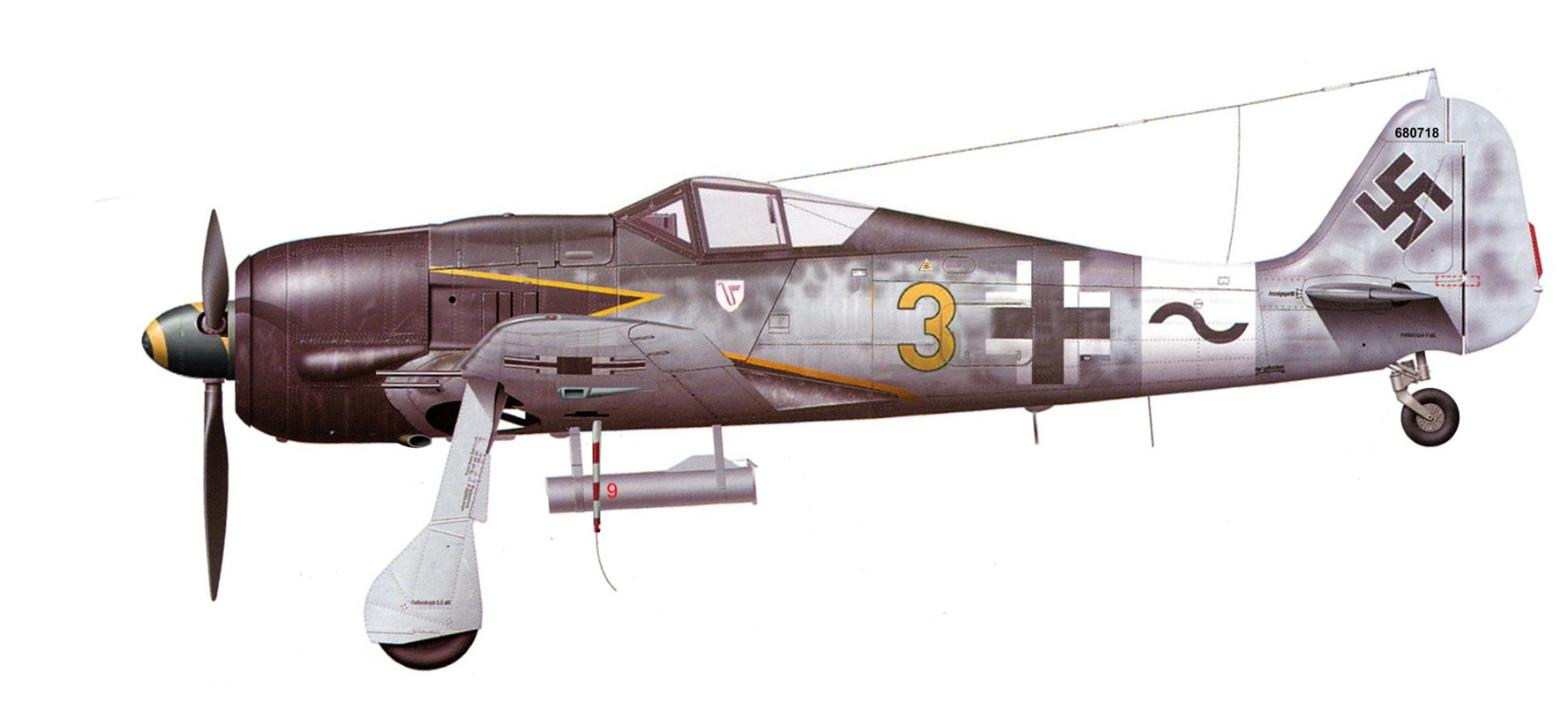

FW 190 A-8 yellow 3, WN 680718 of 12/JG3. Note the Werfer-Granate WGr 21 rocket launcher on the fuselage centreline.

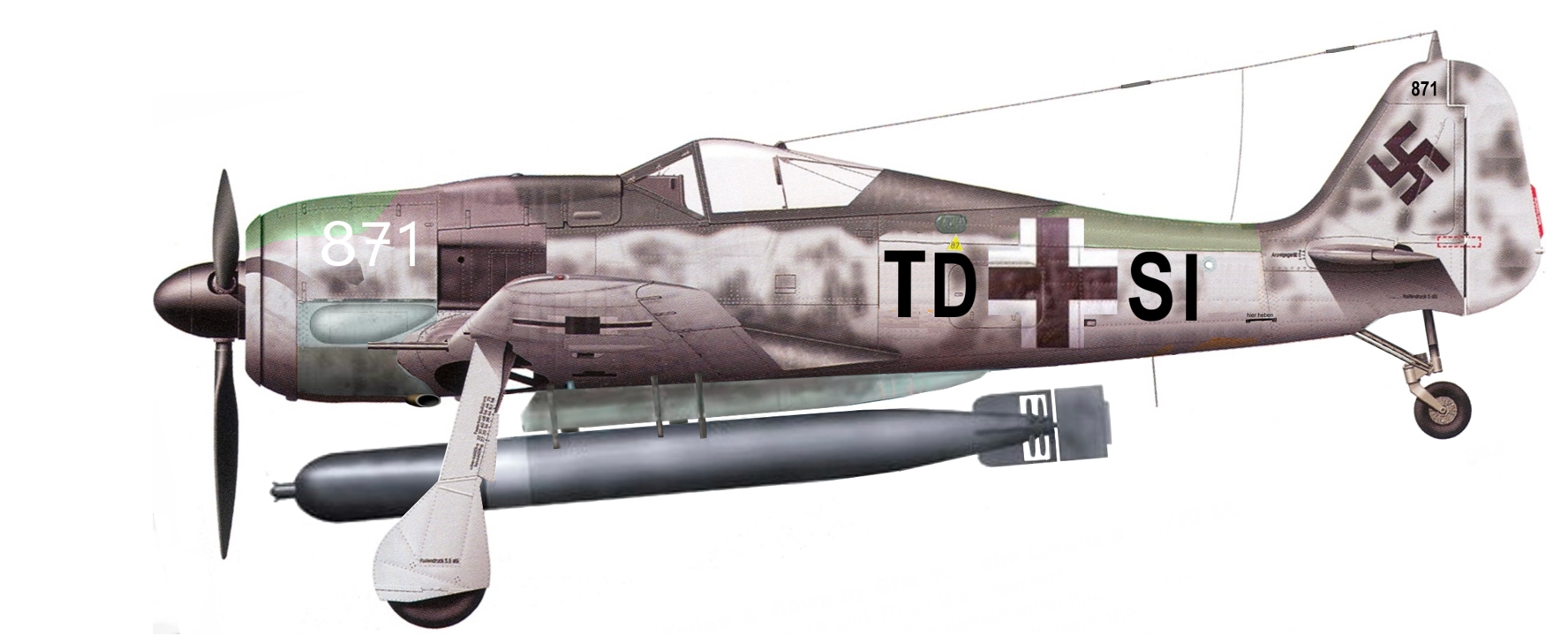

FW 190 A-5 /U14, WN 150871 was modified as a Torpedo bomber with Umrüstsatz U14. The tail wheel was lengthened to give sufficient ground clearence. Two A-5 were thus modified, as well as an F-8.
